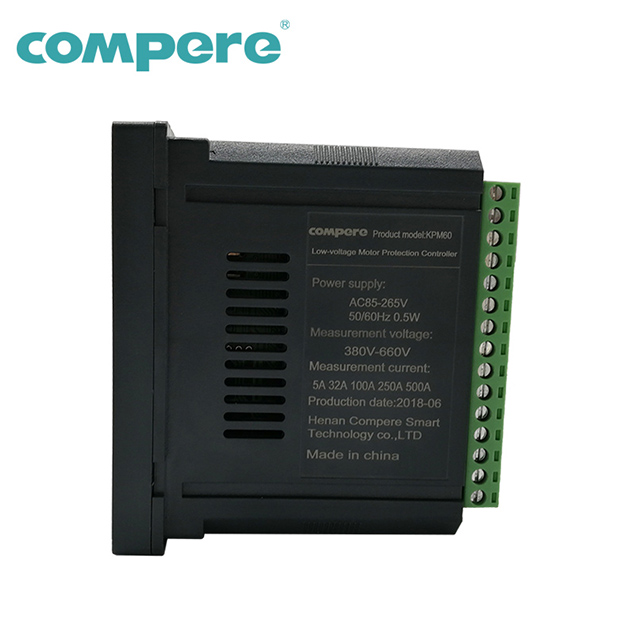

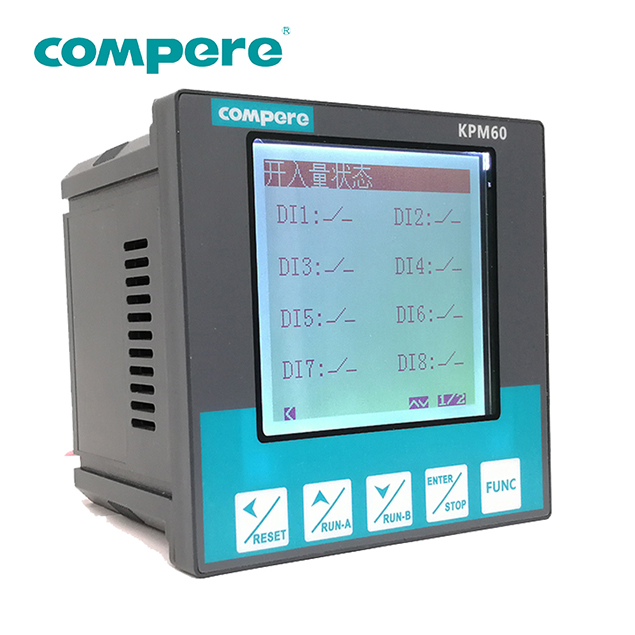

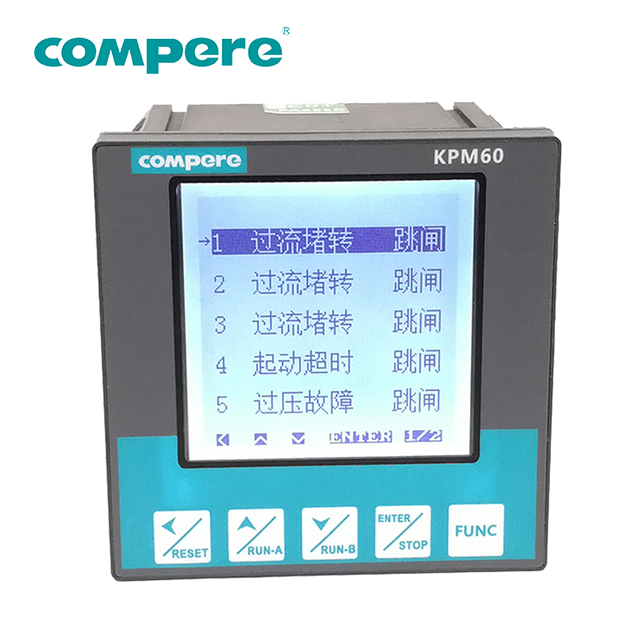

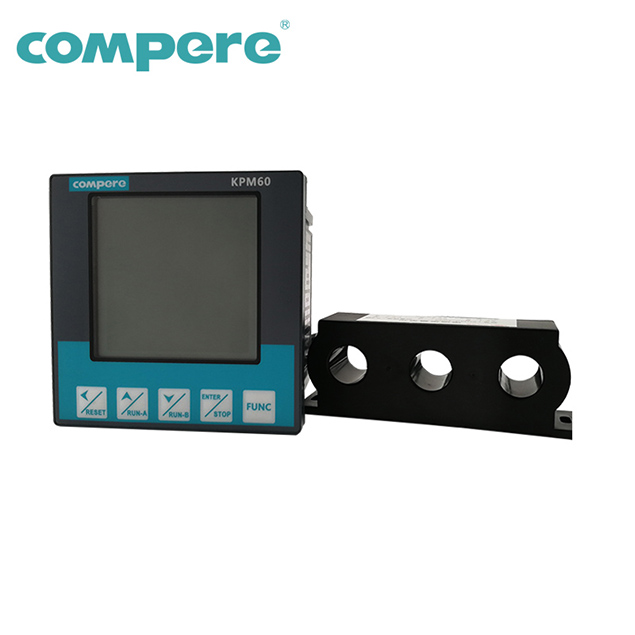

KPM60 Motor Controller

KPM60 series low-voltage motor protection controller is suitable for control protection circuit that rated voltage 380-660V, rated current 5-500A, providing a sound protection and control measures. It could achieve motor network management.

Inquiry now

Online chat

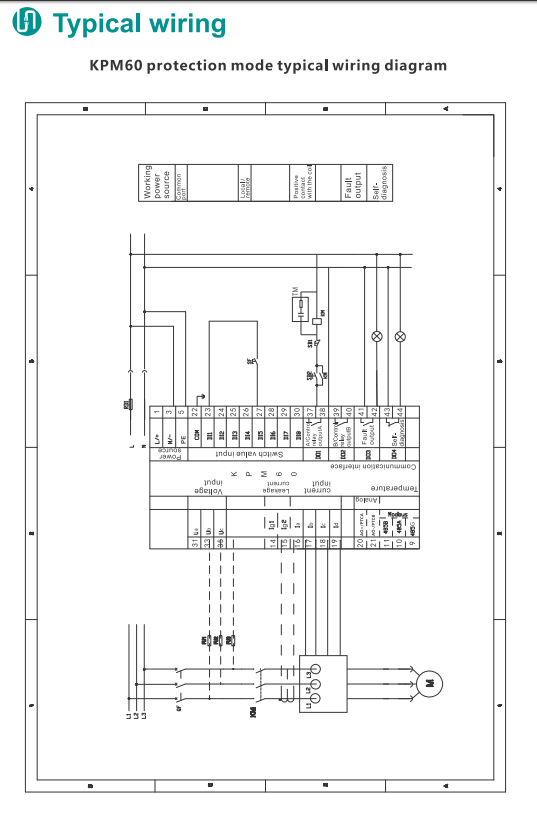

~~Overview~~ ~~Function~~ ~~Specifications~~ ~~Wiring Diagram~~ ~~Download~~

KPM60 series of low-voltage motor protection controller is suitable for control protection circuit that rated voltage 380V to 660V, rated current 5A to 500A , providing a sound protection and control measures, It could achieve motor network management by the communication method that based on a variety of bus, the controller application greatly improves the design and production efficiency, reducing the on-site commissioning and maintenance workload.

Function features

Comprehensive motor protection
口Overload protection
口Stall protection
口Current imbalance protection
口Start overtime protection
口Ground protection
口Phase failure protection
囗Contactor sectional current protection
口Underload protection
口Blocking protection
口Leakage Protection
口TE time protection
囗Overvoltage protection
口Undervoltage protection
口Under-power protection
口Power factor protection
口Undervoltage restart
口Phase sequence protection
口Temperature protection
口/External fault protection

Flexible start function
口Protection mode
口Direct start mode
口Bidirectional reversible start
囗Star / triangle start

Communication function
口Modbus-RTU
口Profibus-DP

Control method
口Monitoring center remote control
口Operation panel control
口External input control (Such as: button)

Perfect management function
Use different operating, maintenance and diagnostic data to help users understand possible faults and prevent them with preventative measures.
In the case of failure, rapid diagnosis, positioning
And correct the problem.

Monitoring data
囗Motor status
囗Three-phase current
囗The maximum starting current
囗Heat capacity
囗Ground current
口Leakage current (need to add leakage protection function)
囗Three-phase voltage (need to increase the voltage protection function)
口Active / Reactive power (need to increase the voltage protection function)
口Power Factor (Need to increase the voltage protection function)
口Active / Reactive power (need to increase the voltage protection function)

Maintain data
口 Motor running time
口 Motor starts times
口 Motor tripping times

Diagnostic data
囗Self-test information
口Current / Auxiliary contact feedback error
口Motor fault alarm information
口Motor fault trip information
囗run cool down time

KPM60Low-voltage motor protection controller-Technical parameters
Working power source	Operating Voltage	AC85~265V/DC80~300V
	Rated power	＜5VA
Input voltage	Rated voltage	380V-660V
	Frequency range	45~65Hz
Input current	Rated current	5A，32A, 100A, 250A, 500A
	Frequency range	45~65Hz

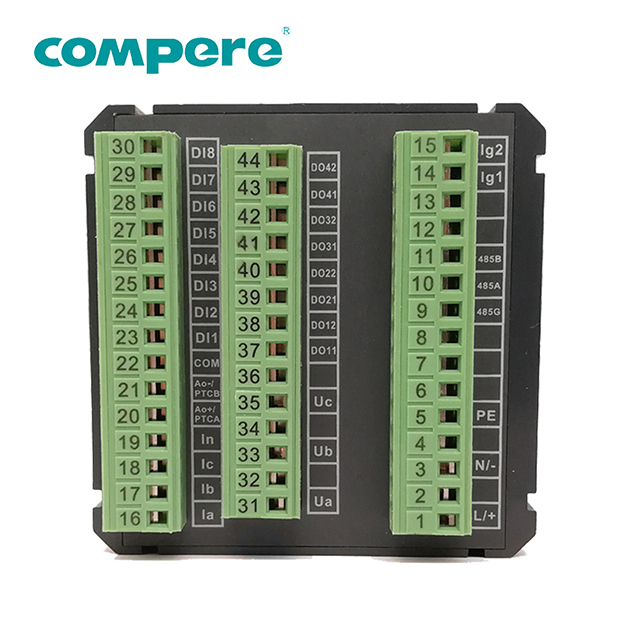

Input/Output	Switch value input	8-way passive main line contact DI input, internal supply DC24V power source
	Relay output	4-way DO output，Contact capacity 250VAC/5A，30VDC/5A
	Analog output	Output range 4~20mA，Programmable
	Temperature input	Measure range 0℃~100℃
Measurement accuracy	Current	±1.0%(10%Ie~120%Ie)
	Leakage current	±1.0%(5%Ise~100%Ise)
	Voltage	±0.5%(20%Ue~150%Ue)
	Frequency	±0.02Hz(45Hz~65Hz)
	Power factor	±1.0%(-1~1)
	Energy	±2.0%
	Power	±2.0%
Communication	Communication interface	RS485，Photoelectric isolation interface
	Communication protocol	Modbus-RTU，1200~38400bps Profibus-DP，9600~12Mbps
Electrical insulation	Power frequency withstand voltage	AC2kV/min~1mA Input-output-power source （GB/T 13729）
	Insulation resistance	＞50MΩ （GB/T 13729）
	Impact voltage	5kV（Peak），1.2/50us （GB/T 13729）
Working environment	Operating temperature	-25℃ ~ +70℃
	Relative humidity	5%~95% No condensation
	Storage temperature	-30℃ ~ +75℃
Electromagnetic Compatibility	Surge (impact) immunity	GB/T 17626.5-2008，Level3
	Electrical fast burst immunity	GB/T 17626.4-2008，Level3
	Electrostatic discharge immunity	GB/T 17626.2-2006，Level3
	Power frequency magnetic field immunity	GB/T 17626.8-2006，Level3
