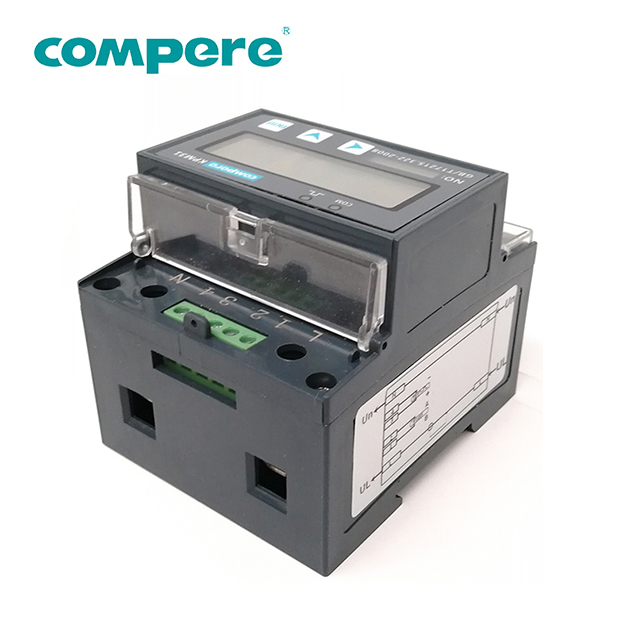

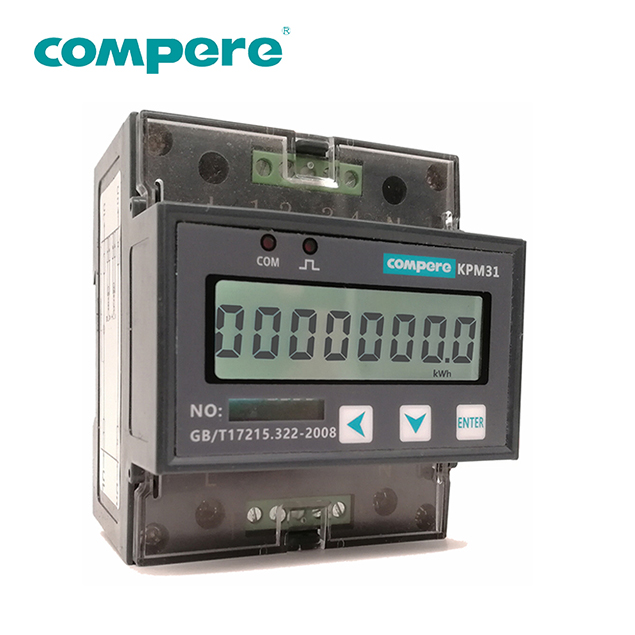

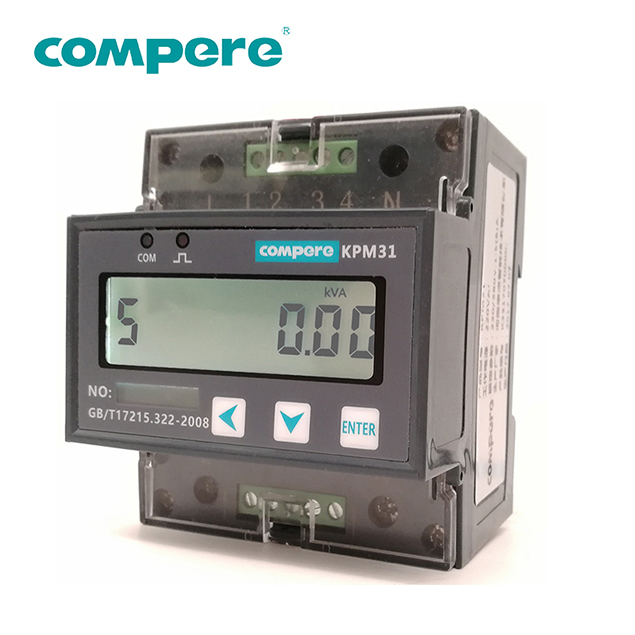

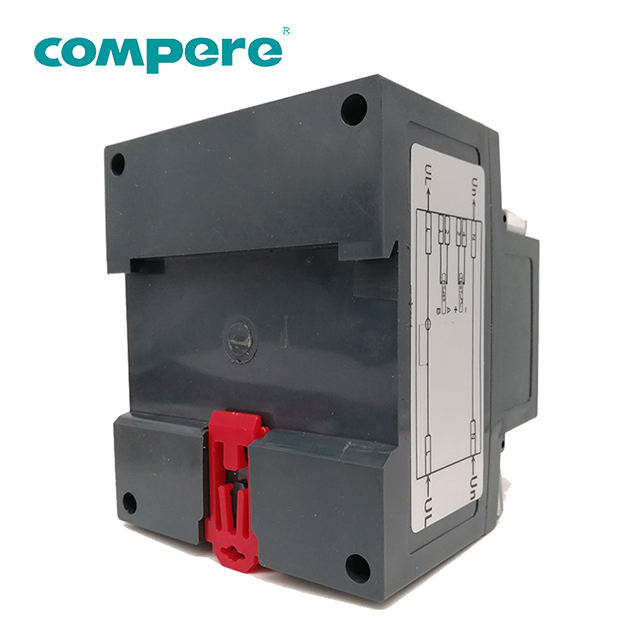

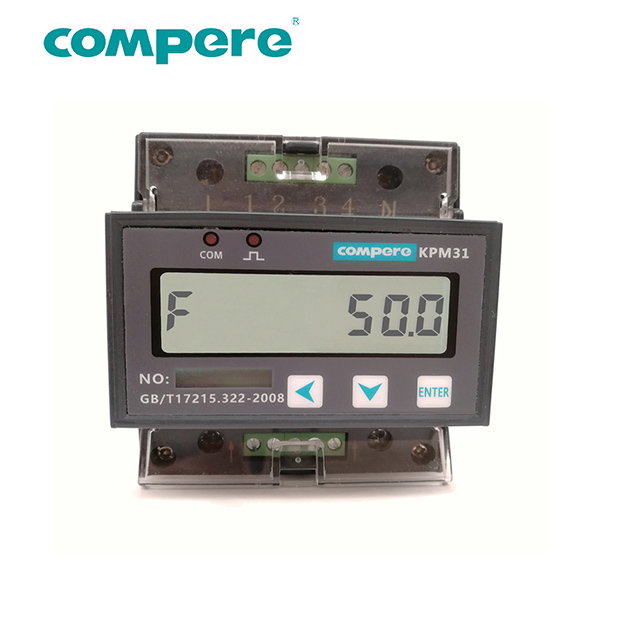

       KPM31 1-phase rail energy meter





                            KPM31 single-phase rail smart meter in full compliance with the national standard GB / T7215-2008 and the international standard IEC62053: 2003 on the 0.5S-class energy meter of the relevant technical requirements, ituse microelectronic tec












                   Overview
                    Function
                    Specifications

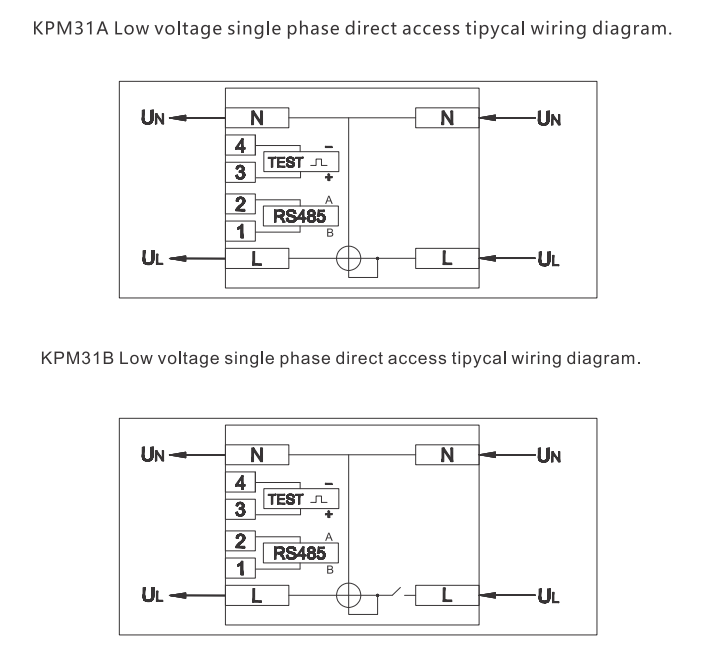

                    Wiring Diagram
                    Download






                            KPM31 single-phase rail smart meter in full compliance with the national standard GB / T7215-2008 and the international standard IEC62053: 2003 on the 0.5S-class energy meter of the relevant technical requirements, it use microelectronic technology and imported large-scale integrated circuits, it also application digital sampling Processing technology and SMT technology and other advanced technology , it can be directly and accurately measure the rated frequency of 50 / 60Hz AC active power, it use LCD7 + 1 bit LCD display, with high reliability, small size, easy installation and so on.



Application occasion

口Energy and energy efficiency management system.

口Internal energy consumption statistical analysis and charging statistics basis.

口Energy metering, automatic meter reading system.

口Intelligent distribution management system.

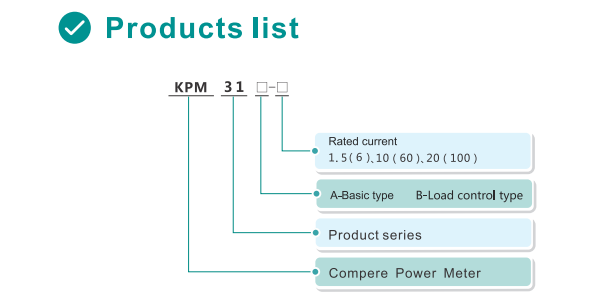

Example: KPM 31A-1.5（6）:Rated AC220V /1.5A(Max 6A), basic type multi-rate energy statistics, historical energy statistics single-phase guideway type smart meter.

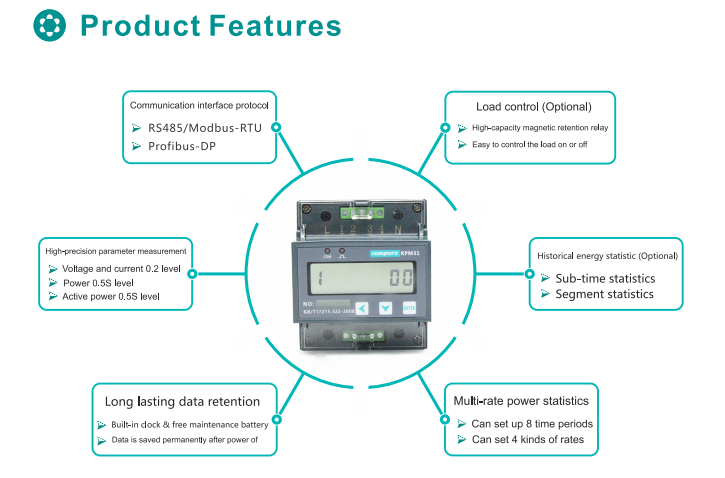

                        Basic Functions



口Measurement of three-phase voltage, current, active power, reactive power, apparent power, power factor, frequency, active energy, reactive energy.

口Multi-rate energy statistics, a day can be set up to eight time periods, four kinds of rates.

口Historical power statistics function.

口Rated current optional.

口1 road passive optical coupler collector active pulse output.

口1 –way RS485 communication interface, Modbus communication.

口7 +1 bit LCD display a variety of power parameters and information.

口Built-in clock and maintenance-free battery, battery capacity real-time monitoring, data is permanently saved after power off.

口Application of large-capacity magnetic retention relay，Load on-off control.




















				 KPM31Multifunction meter-Technical parameters





				Input voltage

				 Rated voltage

				AC 110V/220V







				Overall power consumption

				＜5VA/







				Frequency range

				45~65Hz





				Input current

				Rated current

				1,5（6）A，10（60）A,20(100)A







				Frequency range

				45~65Hz





				Measurement accuracy

				Voltage

				±0.2%(0.01V)







				Current

				±0.2%(0.01A)







				Active power

				±0.5%(0.1W)







				Reactive power

				±2.0%(0.1kvar)







				Active energy

				±0.5%(0.1kWh)







				Reactive energy

				±2.0%(0.1kvarh)







				Power factor

				±0.5%(0.001)







				Frequency

				±0.02Hz(0.01Hz)





				Clock

				 Clock accuracy

				<0.5S/D





				Communication

				Communication interface

				RS485，Photoelectric isolation interface







				Communication protocol

				Modbus-RTU，1200~38400bps





				 Electrical insulation

				Power frequency withstand voltage

				AC2kV/min~1mA Input-output-power source （GB/T 13729）







				Insulation resistance

				＞50MΩ                            （GB/T 13729）







				 Impact voltage

				5kV（Peak），1.2/50us    （GB/T 13729）





				 Working environment

				 Operating temperature

				-25℃ ~ +70℃







				Relative humidity

				5%~95% No condensation







				Storage temperature

				-30℃ ~ +75℃







				 Altitude

				No more than 4000m





				 Electromagnetic Compatibility

				 Surge (impact) immunity

				GB/T 17626.5-2008，Level4







				Electrical fast burst immunity

				GB/T 17626.4-2008，Level4







				Electrostatic discharge immunity

				GB/T 17626.2-2006，Level4







				Power frequency magnetic field immunity

				GB/T 17626.8-2006，Level4
